Vacuum Unit CVC5-**3

Feature

1. Collect tips automatically after dressing.
2. It achieves wide accessibility for a gun by a special structure.
3. Special shape creates a strong vacuum.※1
4. Collected chips can be recycled.
5. Corresponds to our dresser for CDK-R, CDK-SG, CDK-BAYO, CDK-DUAL, CD-SVR.
6. Includes "Air Blow" as a standard, which prevents sticking of chips.※2
7. Recommended solenoid valve: VP342-5G1-02A (SMC).
8. Includes "Air Curtain" as a standard, which prevents chips from falling.

※1 This product does not guarantee perfect collection of chips.

※2 If using an external product air blower unit, the correct performance may not be exhibited.

System 1

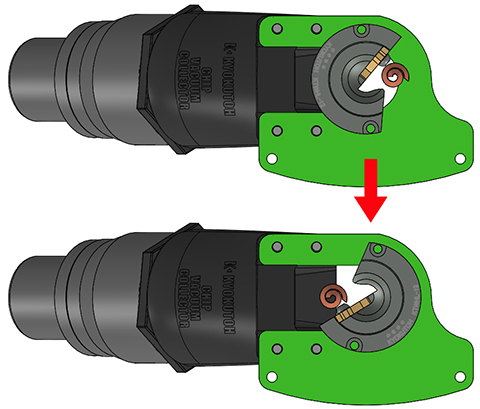

*Special shape bracket includes chips to vacuum unit.

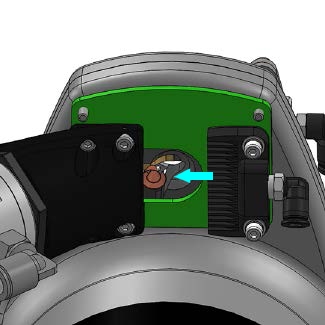

Air Curtain



*More powerful vacuum by blowing air with Air Curtain.

Timing Chart

Air Blow

・Air blower prevents chips from clogging.

・Holder cover helps prevent chips from flying out. (Holder cover is standard equipment)

・Durability improved by changing the material to metallic material.

Dust Box
