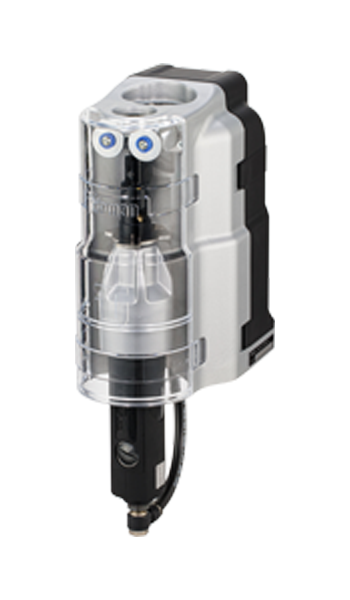

NOZZLE STATION NS-01

Feature

  1. Spatter is thoroughly discharged.
  2. Cycle time is blazing fast (Wire cutting, nozzle cleaning, spraying total: less than 6 seconds).
  3. Space-saving design (L x W x H): 178×128×227 mm.
  4. Easy replacement of consumables (reamer, cutters).
  5. One clamp roller allows adjustment of roller clearance.
  6. Easy removal of motor.
  7. Reamer position adjustable.

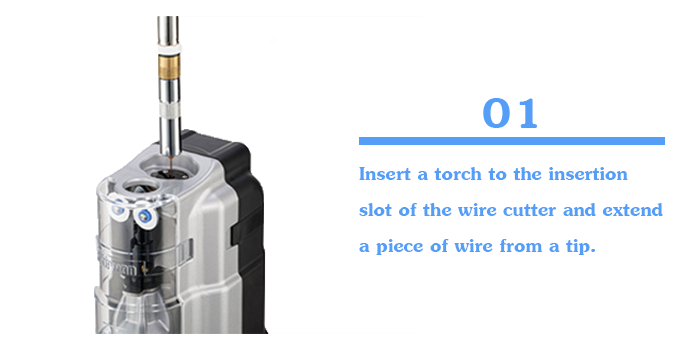

Step 1

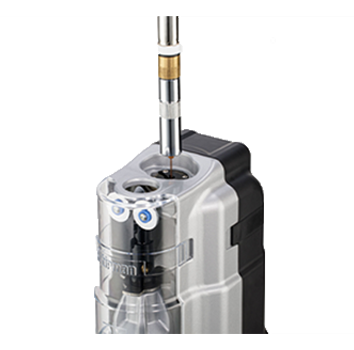

NS-01-01

- Insert a torch to the insertion slot of the wire cutter and extend a piece of wire from a tip.

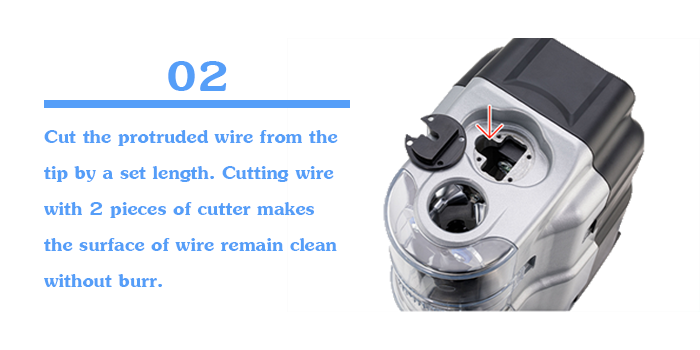

Step 2

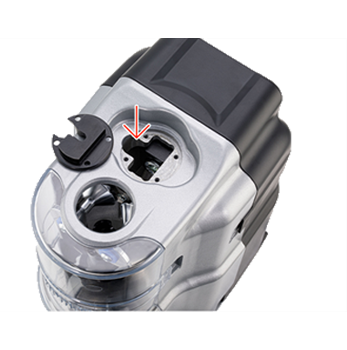

NS-01-02

- Cut the protruded wire from the tip by a set length.

- Cutting wire with 2 pieces of cutter makes the surface of wire remain clean without burr.

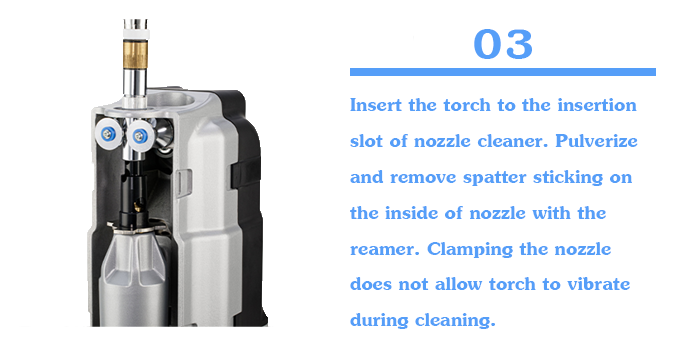

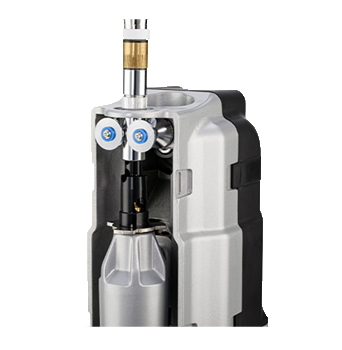

Step 3


NS-01-03

- Insert the torch to the insertion slot of nozzle cleaner.
- Pulverize and remove spatter sticking on the inside of nozzle with the reamer.
- Clamping the nozzle does not allow torch to vibrate during cleaning.

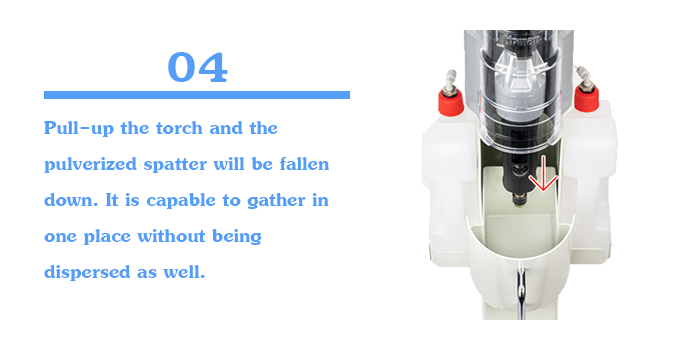

Step 4

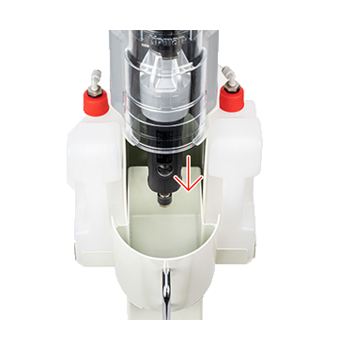

NS-01-04

- Pull-up the torch and the pulverized spatter will be fallen down.
- It is capable to gather in one place without being dispersed as well.

Step 5

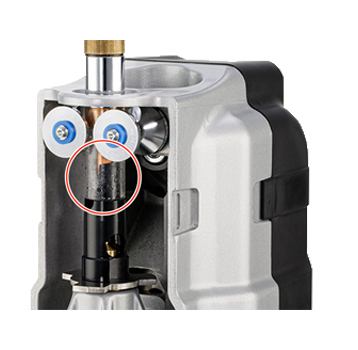

NS-01-05

- Lower down and insert the torch again to the same insertion slot to atomize anti-spatter liquid to the inside of nozzle.
- The misty liquid is well applied there.

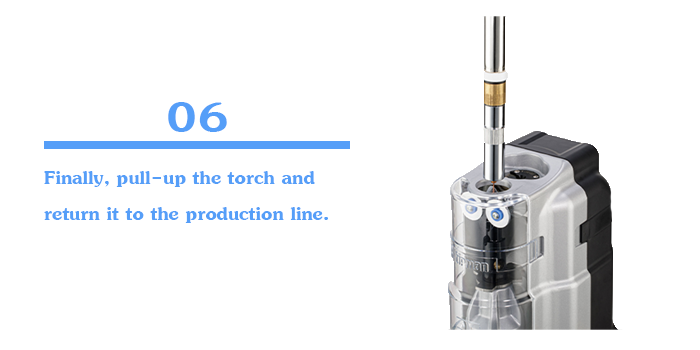

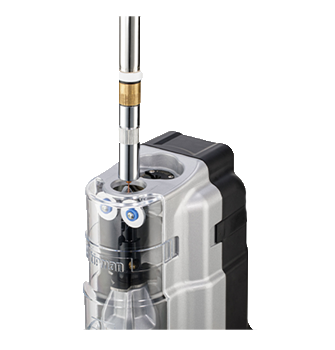

Step 6


NS-01-06

- Finally, pull-up the torch and return it to the production line.
