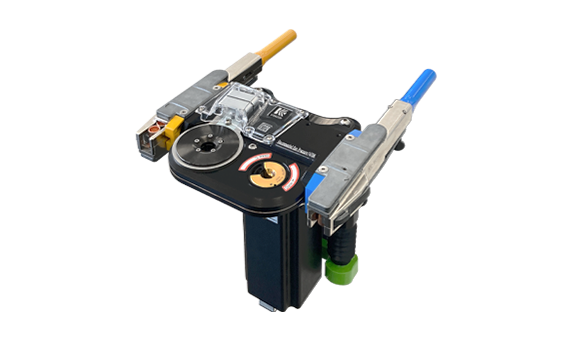

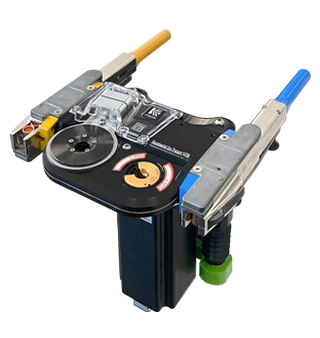

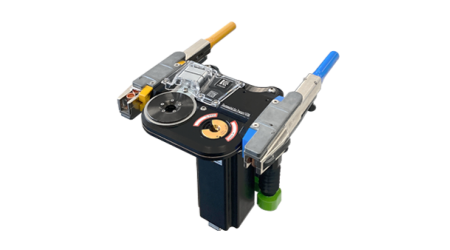

Dual Head Servo Dresser & Changer XCD

Feature

  • Available for both dressing/changing with a single motor.
  • Cylinder brake is attached on remove unit. Strong grip for tip removal.
  • Powered by a compact 3-phase AC motor with high power and speed.
  • Compact design for both ATC/ATC with vertical motor mounting.
  • Highest removable force (tip turning force) among Kyokutoh products.

※Magazine is an optional product.

System 1

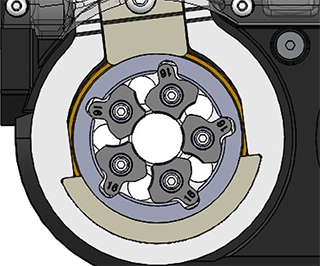

XCD System 1
  • Forward/Reverse rotating nails, shank adapter pullout prevention.
  • Strong removal torque.

System 2

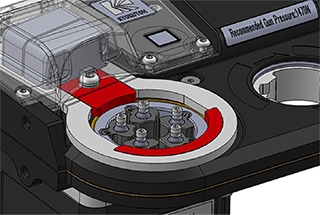

XCD System 2
  • Strong removal performance using cylinder and brake.
  • Brake made of resin material for long life and stable performance.

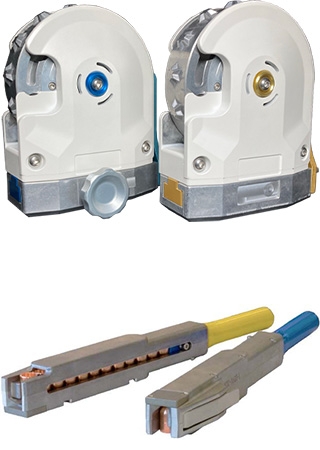

Cartridge


Magazine

Compatible with XR and STC magazines. Mount the magazine on the stand side.

Simple Specification

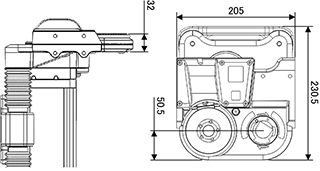

XCD Drawing

Weight: 17.2kg (without magazine)

Rotation speed: 404rpm (Dress-side 200V 60Hz)
