Feature
- Our original technique allows used contact tips to be automatically renewed.
- It takes approximately 40 seconds to process one tip.
- The machine can process up to 150 tips at one time.
- Capable of adapting to various kinds of contact tips and reforming used tips.
※ Some component parts of the machine need to be changed to adapt to different types of contact tips.
Specification

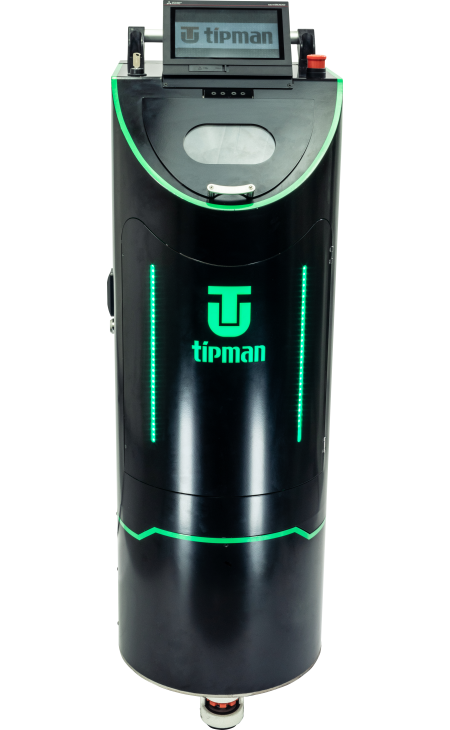

Model: CTR-001
Power: Single-phase or 3 phase, AC200V-240V
Air pressure: 4kgf/cm²
Weight: 115Kg
Size: W340×D555×H1115
Step 1

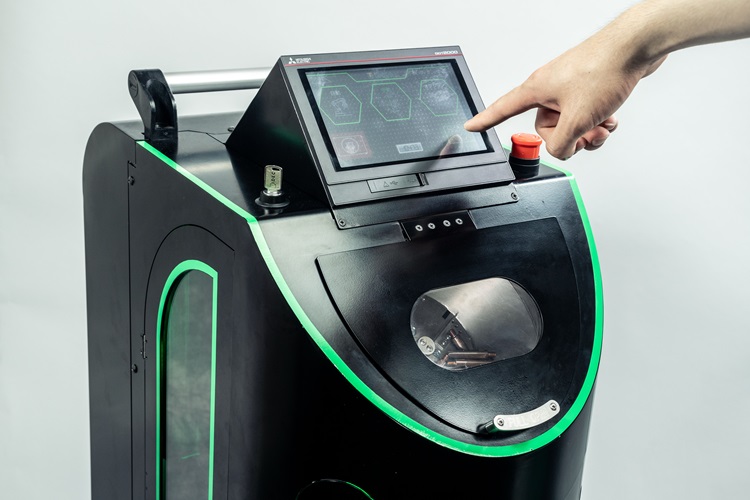

All operations are controlled via a touch panel. To start, push the release lock and start buttons.
Step 2

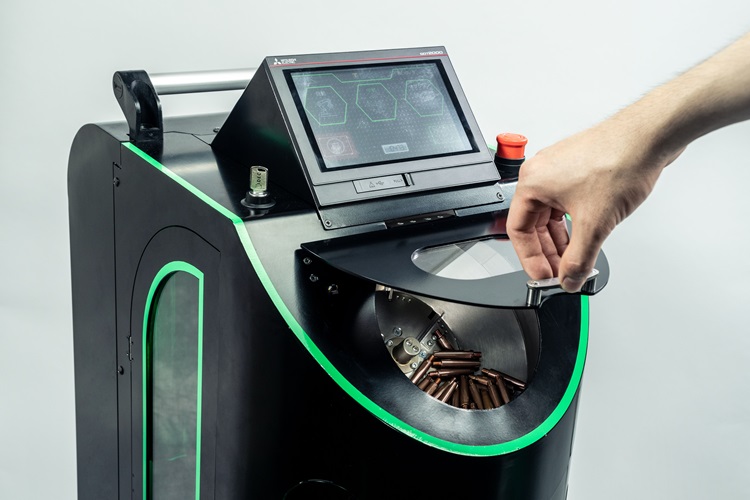

You can load up to 150 used tips at once and add more during the process.
The machine stops automatically if the hatch is opened and restarts when closed.
Step 3

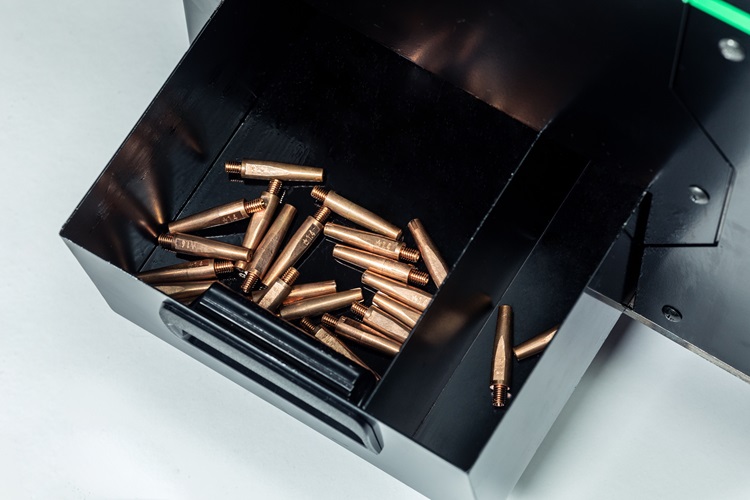

Renewed tips are ejected from a bottom drawer. Rejected tips are sorted and ejected separately if an error occurs.
Step 4

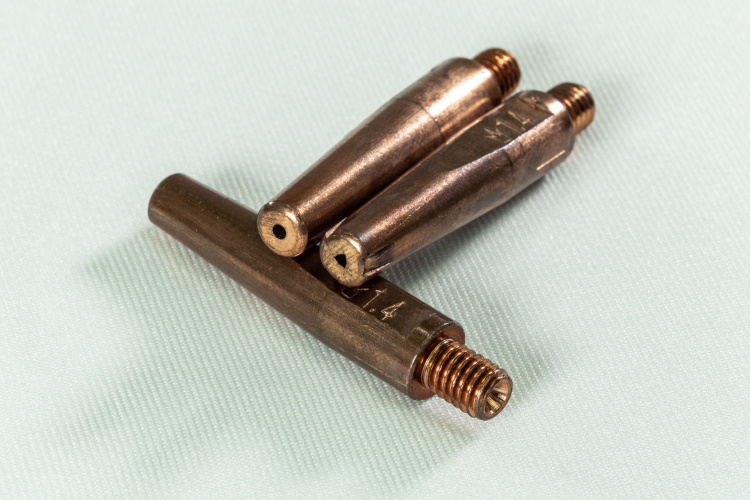

The renewed tips have a triangular hole, ensuring steady power distribution by touching the wire at two points.
